Description

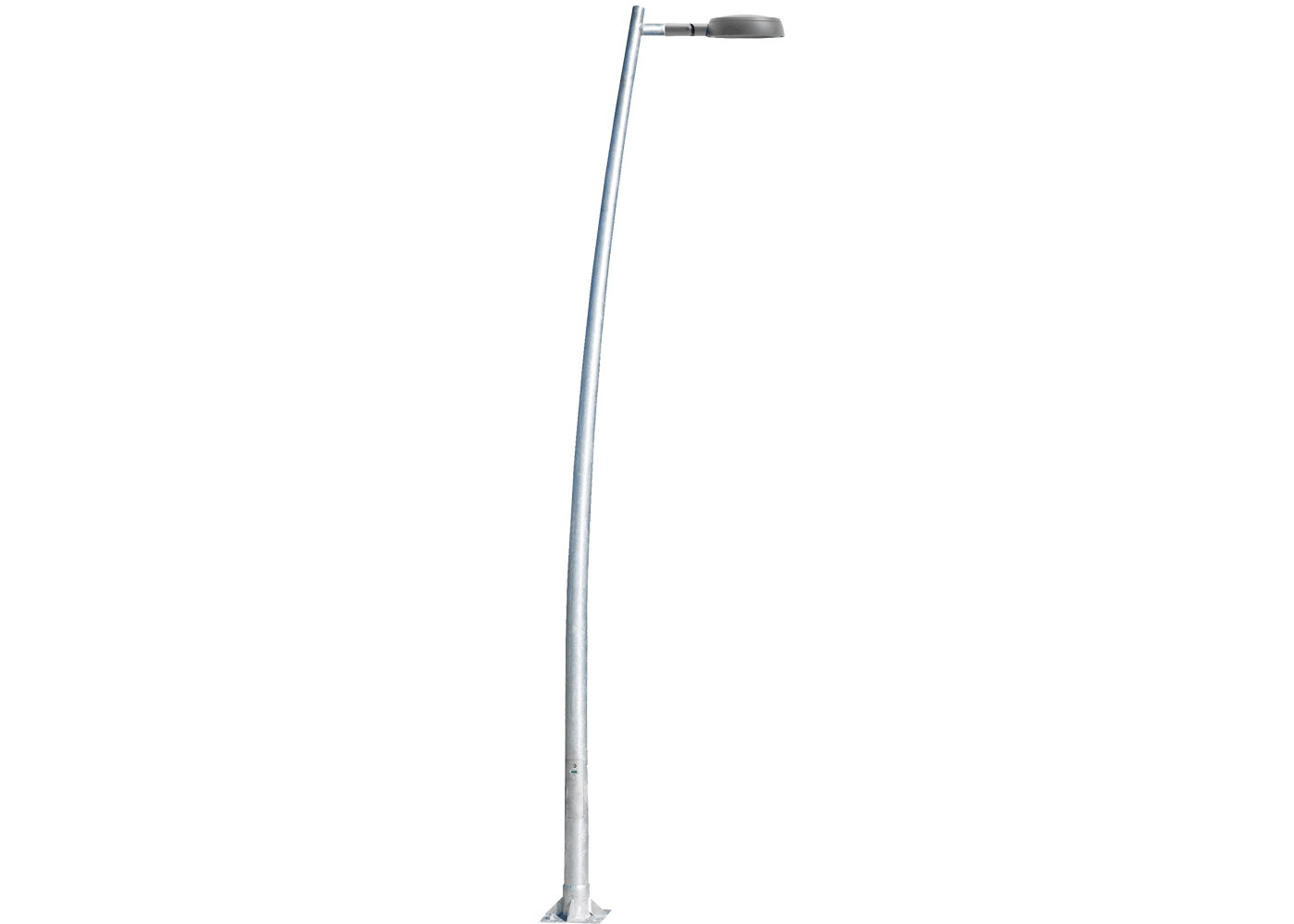

Large-radius truncated conical Pole , manufactured in a single piece from hot-dip galvanized S-235 JR steel. Total Pole height: 5 to 11 meters, with a Ø60 lateral fixing fitting. The base incorporates a reinforcing ring and 4 gussets, providing greater rigidity and stability. Continuous large-radius design with integrated, which provides a technical and discreet presence in the space.
Optional:
- For heights of 9 and 11 m, double is available at different heights.
– Anti-urine treatment at the base.
- Painted finish with a 2m base section finished in micro-textured black and the rest of the shaft in RAL9006 grey. Other RAL paint finishes are available to choose from.
See more…
| Ref. | H | C | D | Ø | A | B |  |
| ICTER50 | 5000 | 600 | - | 60 | 300 | 200 | M18x500 |
| ICTER70 | 7000 | 820 | - | 60 | 400 | 300 | M18x500 |
| ICTER90 | 9000 | 1050 | - | 60 | 400 | 300 | M18x500 |
| ICTER110 | 11000 | 1280 | - | 60 | 400 | 300 | M18x500 |
| Real luminous flux (T) =85ºC) | Initial luminous flux (T) =25ºC) |
| REF. | Nº LEDs | Power W | I Driver mA | Flux lm | Efficacy lm/W | Flux lm | Efficacy lm/W |
