Streetlamp Stylum
ICST+ALIB
X Product added successfully to your WISHLIST. If you want to see all the products click here.
Description
Telescopic Pole with cylindrical base made of galvanized steel S-235 JR with standard micro-textured black finish. Cylindrical shaft with Integrated with a hot-dip galvanized steel suspended tie rod, with single and double options at the same and different heights.
Total height of the Pole : 6 to 9 meters, with a termination in Side diameter 60 mm. The base incorporates a reinforcing ring and 4 gussets, which provide greater rigidity and stability. Minimalist twin-cylinder design with and integrated guy wire, ideal for urban lighting and which brings a contemporary and defined presence to the public space.
Optional:
– Shaft and in polished stainless steel.
- Anti-urine treatment at the base.
See more… Other products of the family
| Ref. | H | H1 | C | Ø | A | B |  |  |  |  |
| ICST60 | 6000 | 5350 | 1400 | 60 | 400 | 300 | M18x500 | x | x | - |
| ICST90 | 9000 | 8000 | 1400 | 60 | 400 | 300 | M18x500 | x | x | x |

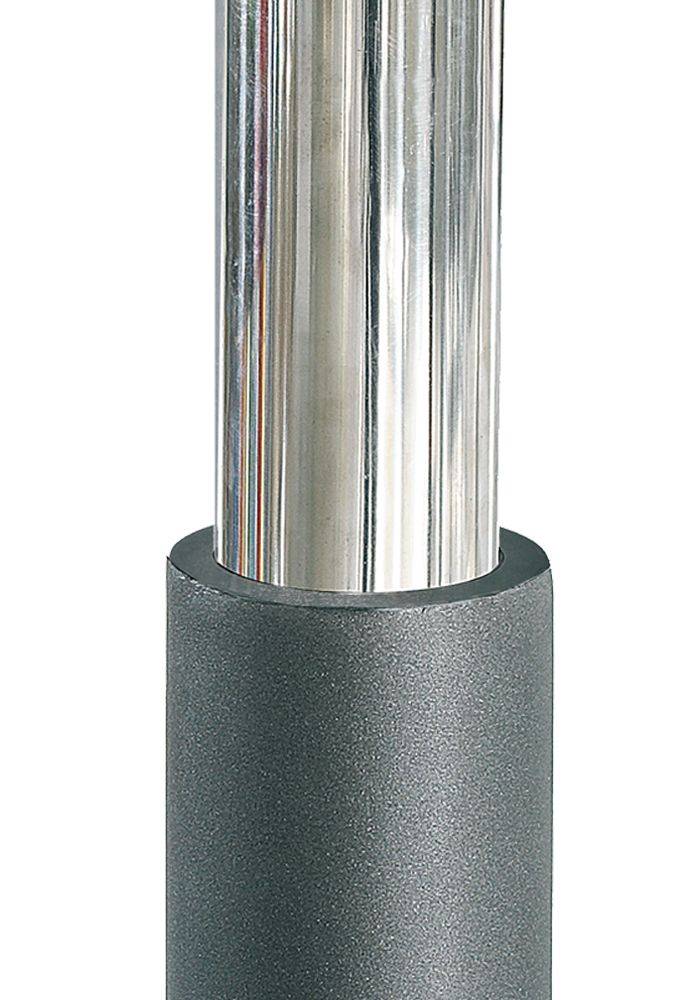

Shaft in polished stainless steel

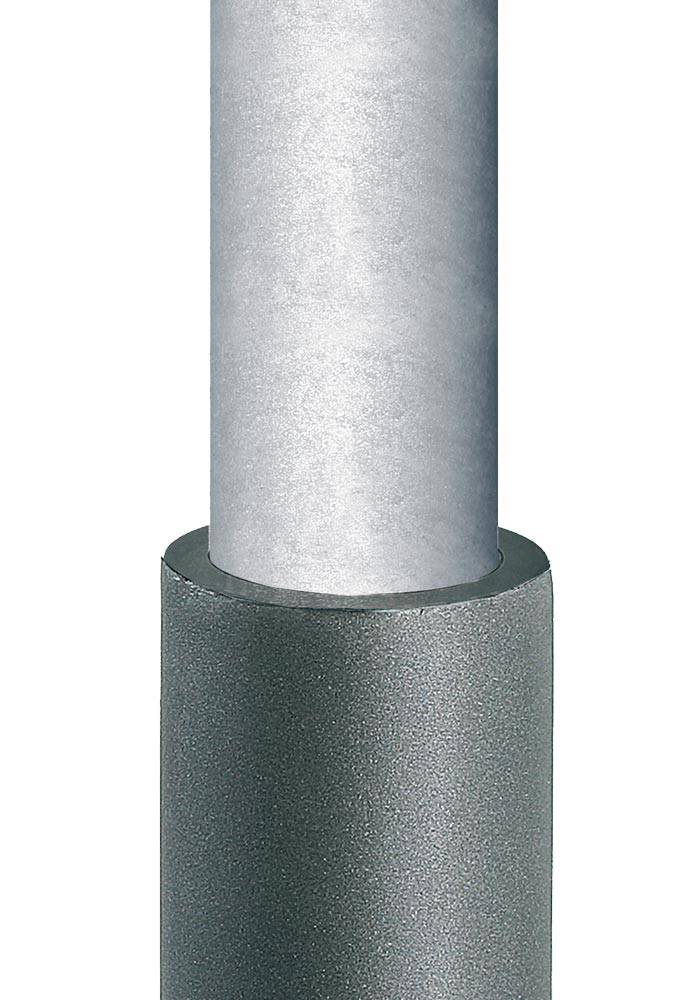

Shaft in galvanized steel with a grey RAL 9006 finish
| Real luminous flux (T) =85ºC) | Initial luminous flux (T) =25ºC) |
| REF. | Nº LEDs | Power W | I Driver mA | Flux lm | Efficacy lm/W | Flux lm | Efficacy lm/W |
