Litter Bin Circular Plus
PA600G
X Product added successfully to your WISHLIST. If you want to see all the products click here.
Description
Litter Bin CIRCULAR PLUS, total dimensions (width x Ø x height) 540x435x885 mm, 70 liters, made with a folding steel bucket (treated with the Ferrus process, the triple-layer protector for iron, which guarantees optimal corrosion resistance), with a subsequent coat of primer and baked-on polyester paint. Gray color. Supported by a Ø40 mm tube structure with an anchoring base and rectangular plates with two Ø12 mm holes for fixing to the floor. Prepared for anchoring with 4 M8 expansion bolts depending on the surface and project.
Optional not included: Customizable marking with 74x35 mm/80x100 mm aluminum plate.
The Ferrus treatment consists of three layers applied after shot cleaning all impurities: an electrolytic bath, an epoxy coating and a grey RAL 7011 polyester paint coating.

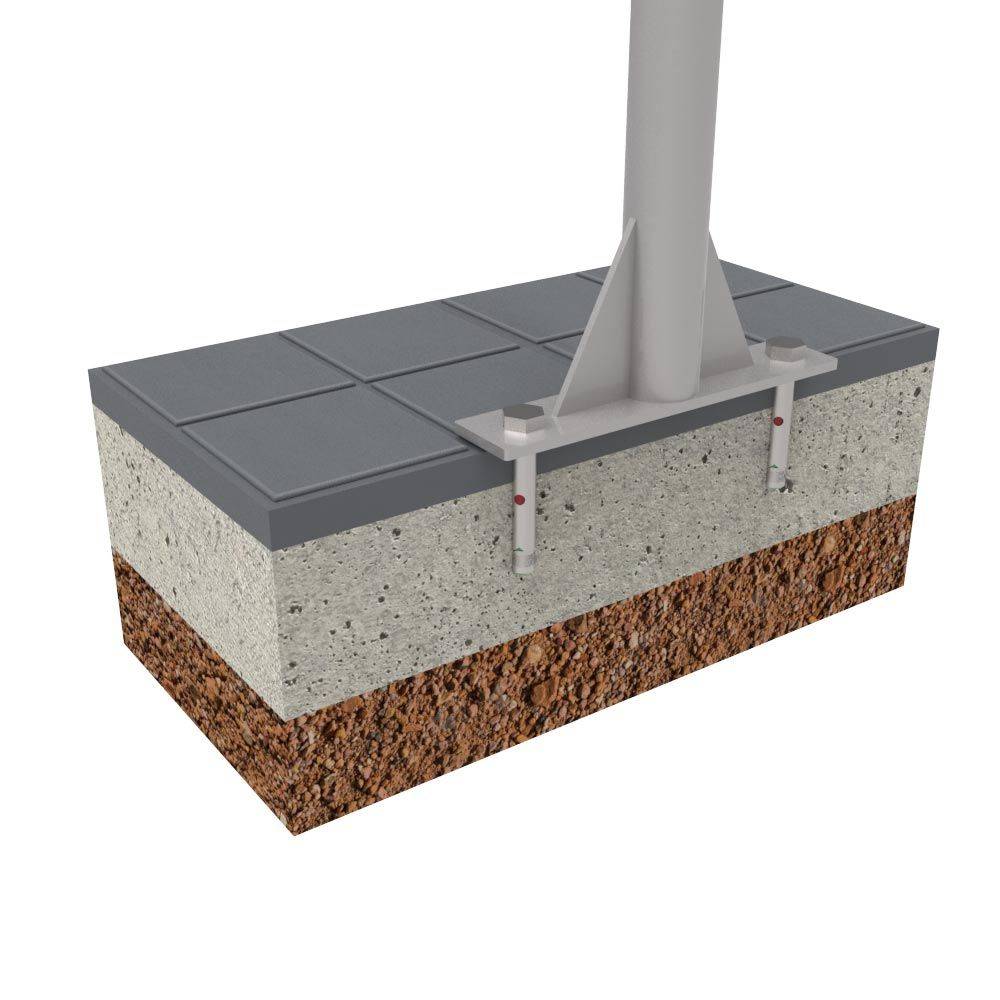

Bin supported by a Ø40 mm tubular structure with an anchoring base and rectangular bases with two Ø12 mm holes to fix it to the ground.
Recommended anchoring: by means of four M8 expansion bolts depending on the surface and the project.
See more…

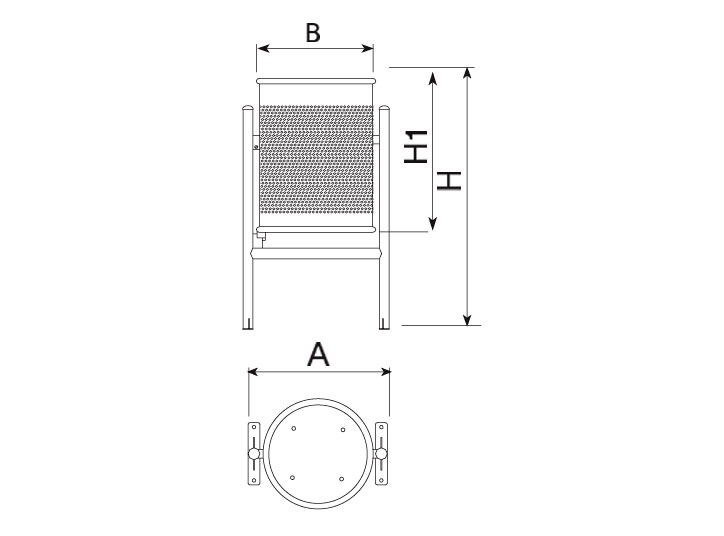

| Ref. | A | Ø B | H | H1 |
| PA600G | 540 | 435 | 885 | 540 |
Customizable marking
Aluminum plate 74 x 35 mm. / 80 x 100mm.
Available with:

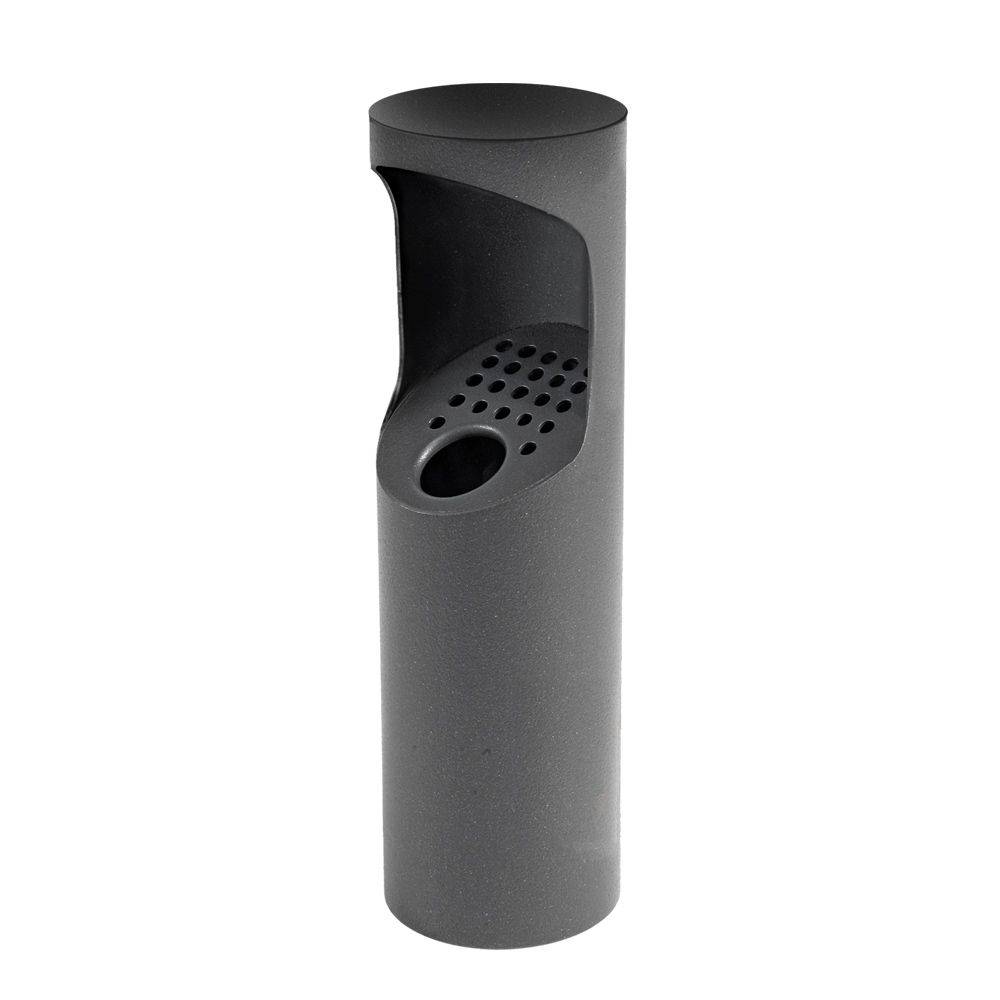

Built-in CLIP ashtray (VC4).
