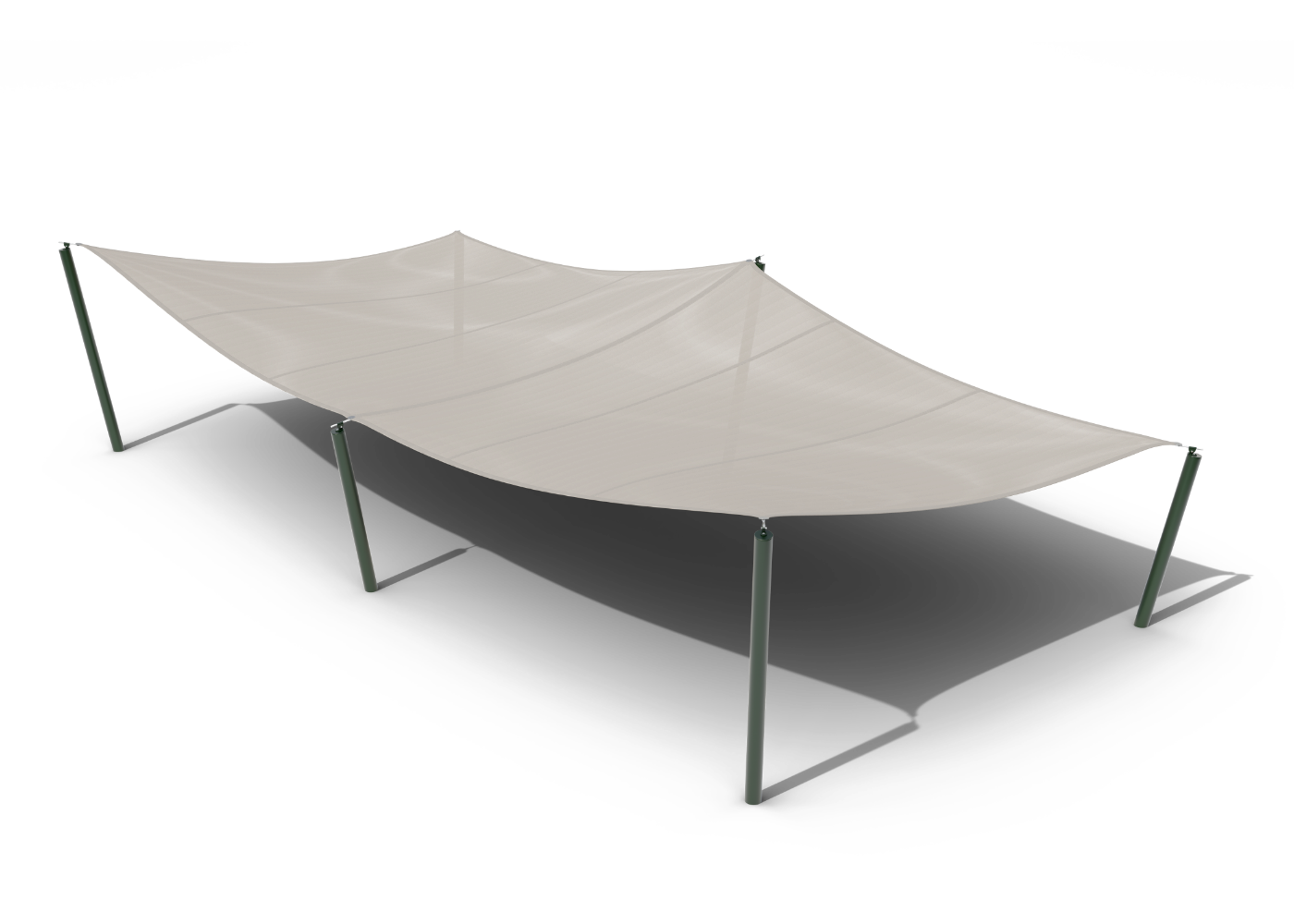

The anchoring points of the sail are at different heights, in this way we achieve double curvature shapes that give the whole a greater stability against the wind. Equipped with rings that facilitate assembly. They include rings for anchoring the sails. Fully finished and plumb. They have a lower spider for fixing to the foundation.
Structure, Steel: S275 quality steel with hot-dip galvanised finish or oven-painted polyester powder coating. DEGREASING + phosphates + EPOXY PRINTER + ENAMEL 2 / CM / LIN. The pillars will be provided with rings to facilitate assembly and rings for anchoring the sails. They have a lower base plate to accommodate the foundation. The steel is manufactured in accordance with the CE Marking, standard UNE-EN 1090-1:2011+A1:2012 and sized according to the criteria of CTE DB SE-A. The pillars are fully finished and plumb. Clamps, cables and tensioners are included for correct anchoring and tensioning. Cables: Made of Ø 8/10 mm thick electro-galvanised steel. Clamps: Made of hard aluminium, equipped with cable glands. Tensioners made of galvanised steel.
- Aesthetic finish: Baked with polyester powder paint.
- Anti-corrosion finish: Hot dip galvanized.
Optional:
Galvanized + Baked with polyester powder paint. DEGREASING + phosphates + EPOXY PRINTER + ENAMEL 2 / CM / LIN.
Fabric, HDPE: High quality and resistant micro perforated fabric, specifically developed as an outdoor fabric, very strong and stable, for tensioned structures and shade sails. It offers the best combination of sun protection, strength and durability, ensuring easy maintenance. Chain-stitch fabric, does not fray or tear, knitted with 100% round monofilament yarn for structural stability, Balance between weft and warp ensuring minimum maintenance. HDPE does not rot or absorb moisture. With a 12-year guarantee on the fabric against UV degradation. UV blockage from 90.1% to 94.9%. Reduces sun exposure, allowing safer and longer outdoor use. Breathable fabric to improve air flow and channel the breeze.
Technical specifications of the FABRIC:
- UV resistant HDPE knitted fabric yarn
- Composition100% Monofilament
- Temperature range (° C) -30 to +70
- Fabric weight (gsm) (AS2001.2.13) 340 gr x m2
- Approximate thickness (mm) 1.6
- Tensile strength - warp: (N) (average) (AS2001.2.10) - 187N
- Tensile strength - weft (N/50mm) (AS 2001.2.3.1) - 2494N/50mm
Optional:
Made of waterproof PVC fabric.
Maintenance:
- Clean and level the areas of the different facilities.
- Check that the screws and nuts are tight, paying special attention to those that, due to the nature of the structure, are susceptible to loosening.
- Check the correct tension of the sail.
- Inspect that the fabric is in its correct condition.
Advantages of our GEOVELA S:
- Create cool, shaded spaces , ideal for enjoying the outdoors in total comfort.
- Cover areas of various sizes and heights , adapting to the needs of each project.
- Integrate with the architecture of the environment , combining functionality and aesthetic design.
- Easy assembly and simple maintenance , easy disassembly system for winter season
- Weather resistance: They prevent rain accumulation and withstand inclement weather such as wind and storms.
Versatile applications for any space:
- Playground : They guarantee shade and protection for the little ones.
- Nursery schools : Promoting spacesafe environments for outdoor learning and recreation.
- Public squares and leisure areas : They provide aesthetics and comfort in areas of community use.
- Stages and stands : Improve the experience at outdoor events.
- Parking lots : Protect vehicles from the sun and rain.
- Sports facilities : Provide shade for spectators and athletes.
- Shopping centres, hotels and campsites : Designs that add value and comfort to tourist and commercial spaces.
